1.The blade is good in sharpness and efficiency at the process of cutting, meanwhile, it has a long life span
2.Good cutting result: smooth cutting, flat surface and even size
3.Stable cutting, narrow cutting gap, stone waste reduction

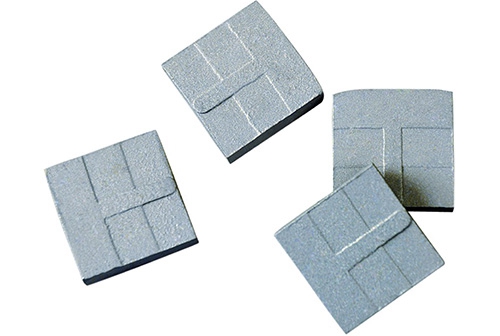

4.M-Shape segment is easy for diamond opening
Diameter
直径
(mm)
|
Steel core
基体厚度
(mm)
|
Segment
size
刀齿尺寸
(mm)
|
No.
齿数
|
900 | 5.0 | 24*7.0/6.2*13(15,20) | 64 |
1000 | 5.0 | 24*7.0/6.2*13(15,20) | 70 |
1200 | 5.5 | 24*7.4/6.6*13(15,20) | 80 |
1400 | 6.0 | 24*8.0/7.2*13(15,20) | 92 |
1400 | 6.5 | 24*8.4/7.6*13(15,20) | 92 |
1600 | 7.2 | 24*9.2/8.4*13(15,20) | 108 |
1800 | 7.5 | 24*10/9.2*13(15,20) | 120 |
2000 | 8.0 | 24*11/10*15(20) | 128 |
2200 | 9.0 | 24*11/10*15(20) | 132 |
2500 | 9.0 | 24*12/11*20(30) | 140 |
2700 | 9.0 | 24*12/11*20(30) | 140 |
3000 | 9.3 | 24*13/12*20(30) | 160 |
3500 | 9.5 | 24*13.5/12.5*20(30) | 180 |
