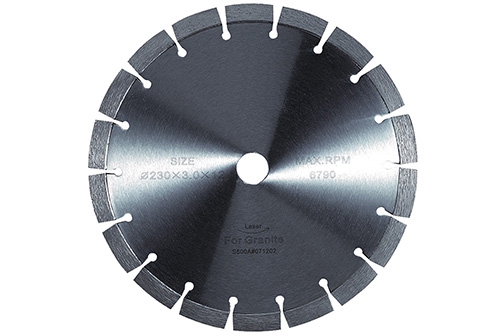

‘∨’ Shape Welded Blade
Unique ‘∨’ step design of segment side face reduces blade stone interface friction that will make fast diamond exposed and high cutting efficiency with good debris removal and better cooling.
Details:
Product name |
Specification |
Core thickness |
Segment dimension |
Segment number |
Application |
Note |
“V”shape welded blade |
Φ900 |
5.5/5.0 |
24*7.0/6.6/6.2*15(20) |
64 |
Granite |
Other specifications are available upon request |
Φ1000 |
5.5/5.0 |
24*7.0/6.6/6.2*15(20) |
70 |
|||
Φ1200 |
6/5.5 |
24*7.8/7.3/6.8*15(20) |
80 |
|||
Φ1350 |
6.5 |
24*8.4/8.0/7.6*15(20) |
88 |
|||
Φ1600 |
7 |
24*9.4/8.9/8.4*15(20) |
104/108 |
|||
Φ1800 |
8 |
24*10.0/9.5/9.0*15(20) |
120 |
|||
Φ2000 |
8/8.5 |
24*10.6/10.2/9.8*15(20) |
128/132 |
|||
Φ2200 |
8.5/9 |
24*11.0/10.5/10.0*15(20) |
132/136 |
|||
Φ2500 |
8.5/9 |
24*11.5/11/10.5*15(20) |
140 |
|||
Φ3000 |
9/9.5 |
24*12.5/12/11.5*15(20) |
160 |
|||
Φ3500 |
9/9.5 |
24*13.5/13/12.5*15(20) |
180 |
