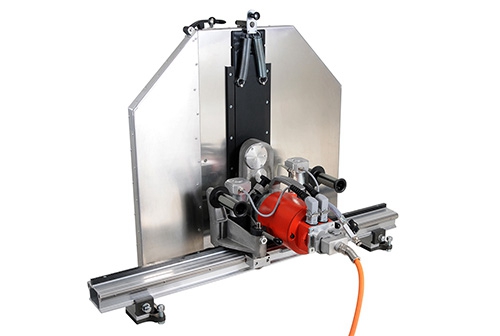

WEKA*WS75 (A,H) FRIDA Diamond Rotation Arm Wall Saw

Product Introduction

Powerful electric wall saw for cutting concrete walls and masonry up to 395 mm deep, with water-cooled high-frequency motor and wireless remote control.

Details

WS75

WS75 H

Nominal power

W

6000

11000

Output power

W

4800

9000

Rated speed of the spindle

1/min

1400

1000-2000

Saw blade diameter

mm

750/930

750/930

Cutting depth

mm

320/410

320/410

Feed power – longitudinal and dip feed

N

2000

2000

Speed – longitudinal feed

m/min

0-3

0-3

Speed – dip feed

1/min

0-1

0-1

Weight – saw motor

kg

17

13,5

Weight – basis without saw motor

kg

19

19

Blade fixture

mm

1“ (25,4)

1“ (25,4)

Saw flange for flush cut

TK90, 6xM8

TK90, 6xM8

Advantages:

· Very powerful, water-cooled three phase motor with 6 kW or extremely strong high frequency motor with 11 kW

· High feed power of the longitudinal and dip feed

· Motor can be disconnected from the machine basis without any tools

· Variable spindle speed

· Gear with oil bath lubrication and overload clutch

· Torsion resistant track with wear resistant taper gibs made of stainless steel

· Splash water proof according IP 55

· Blade guard for flush cutting as accessory


Application

· Cutting of concrete walls and masonry up to 395 mm

· Controlled demolition during refurbishment

· Flush cutting


(provided by the WEKA China general agent)
