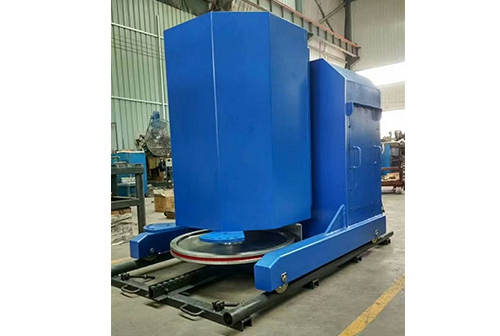

Diamond wire saw machine for mining
Dedicated to mining, especially for granite, marble and other stone.
Details：
|
|
|
37-55 KW 6 |
Morn than 55 KW 8 |
|
The main flywheel daimeter |
mm |
800 |
|
|
Wire saw speed |
m/s |
0-40 |
|
|
Maximum length |
m |
20-120 |
|
|
Walking motor power |
W |
1500 |
|
|
Transverse distance (electric) |
mm |
910 |
1000 |
|
The biggest cut spacing |
mm |
1900 |
|
|
Rotation Angle (electric) |
|
360o |
|
|
The host walking speed |
m/h |
0-90 |
|
|
Guide rail length |
m |
Total length 6 m(3*2M/PCS) |
|
|
Power |
|
AC 380V 50HZ |
|
|
Licensing temperature |
℃ |
-15o ~40o |
|
|
Overall dimensions |
mm |
1950*1410*1290 |
|
|
The weight |
T |
2.2 |
3.5 |
Advantages:
Electrical part
1. The console uses four-wire control, two 24V power cables, and two 485 communication lines. The fewer the wires, the lower the failure rate.
2. Wire saw electrical control part of the installation position is installed with side opening door, easy for customers to view and maintain
3. There are two sets of control modes for the translation and rotation of the machine head. The handle control in the machine and the external remote control can finely adjust the head movement or rotation during the cutting of the machine to achieve alignment with the kerf.
4. Using the centralized control of the screen, all the control functions are integrated on one screen. At the same time, all the switch buttons on the console can see the working state on the screen, and the self-checking switch components are in good condition.
5. It can read the grid voltage in real time to avoid customer complaints due to voltage problems.
6. The machine adopts the intelligent reading function, which can automatically adjust the cutting progress according to the hardness of the stone in real time.
7. If there is a fault in the electrical part of the machine, the screen will automatically display
8. Unattended function: When the automatic cutting is completed, after cutting a piece of material, the machine will automatically stop working and enter the standby state.
Mechanical part
1. The rotating part of the machine head adopts the split design. When the machine is used for a period of time, there will be gaps. If the gap is too large, the machine head may jump. The split design can be fine-tuned after the product gap to keep the machine head. Do not beat. At the same time, this design also effectively reduces the high maintenance costs of the machine due to accidental falls.
2. Guided design: the guide wheel adopts the automobile bearing, which has good waterproofness, good load bearing and durability.
