Stone cutting tools
You are here:Home ->Products->

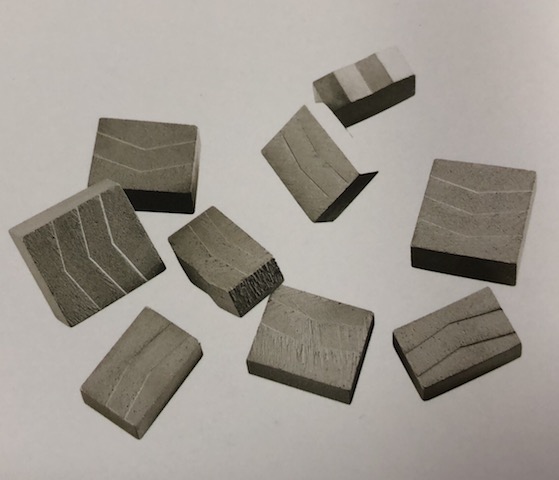

Multi Blade And Segment

Product Introduction

1.It work in low noise, small cutting slot which ensures maximum use of stone and uniform thickness

2.Stable cutting, narrow cutting gap, stone waste reduction

3.Application: granite, marble

Application for granite

Diameter
直径
(mm)
Steel core
基体厚度
(mm)
Segment size
刀齿尺寸
(mm)
No.
齿数
1000 5.0 24*7.0(6.2)*13(15) 70
1200 5.5 24*7.4(6.6)*13(15) 80
1400 6.5 24*8.4(7.6)*13(15) 92
1600 7.2 24*9.2(8.4)*13(15) 108

Other specifications are available upon request.


Application for marble

Diameter
直径
(mm)
Steel core
基体厚度
(mm)
Segment size
刀齿尺寸
(mm)
No.
齿数
1000 5.0 24*7.0(7.5)*8(10,13) 70
1200 5.5 24*7.5(8)*8(10,13) 80
1400 6.5 24*8.5(9)*8(10,13) 92
1600 7.2 24*9.5*8(10,13) 108
Other specifications are available upon request.
